XELIS 3D

Xelis 3D is an advanced 3D imaging solution for loading datasets and reconstructing 3D images. Its web-based technology enables access wherever an internet or wireless connection is available.

Xelis supports standard DICOM images and integrates with INFINITT PACS to share images and medical information.

Key features

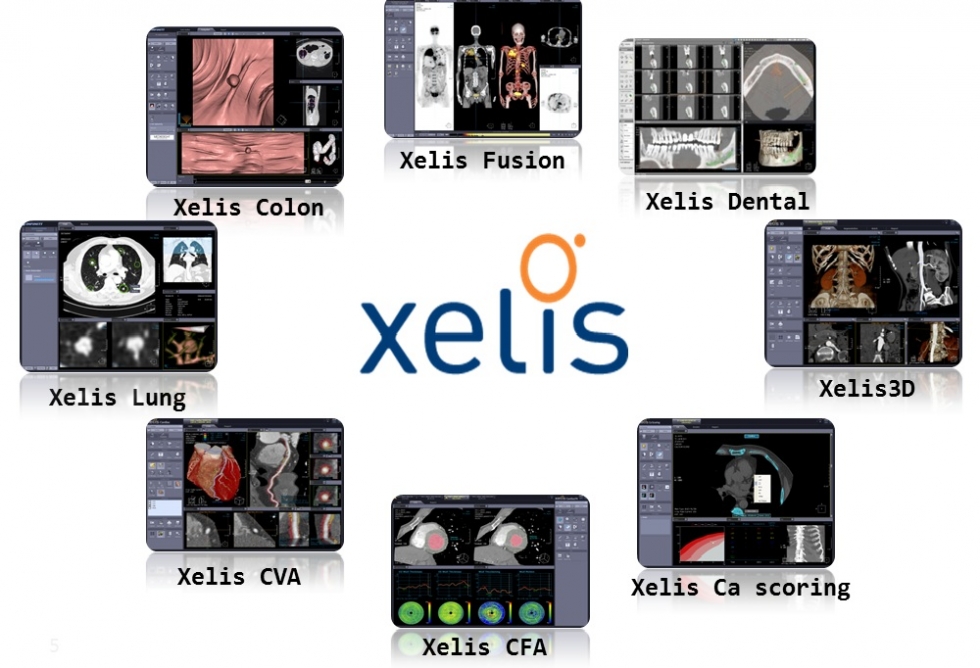

Flexible licensing: a full package covering XELIS 3D, Cardiac, Lung, Colon, Fusion and Perfusion, or individual specialized modules.

Straightforward integration with INFINITT PACS.

Concurrent user access.

Applications

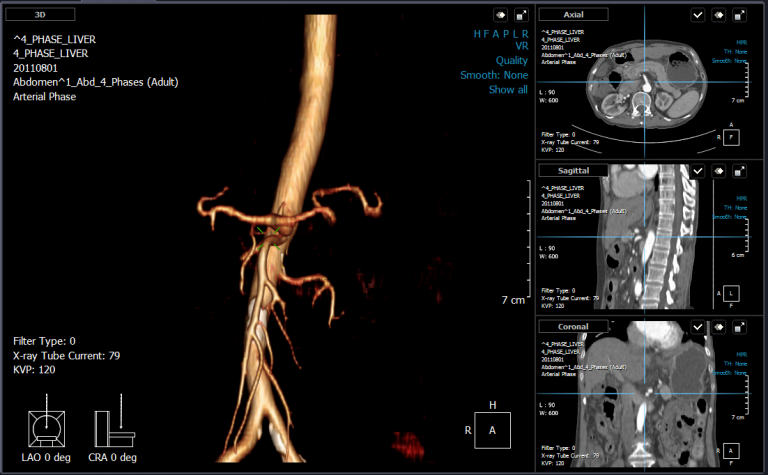

Xelis 3D

• Xelis 3D provides fast, convenient 3D visualization from large image datasets, helping users identify abnormalities.
• VR, MIP, MinIP and MPR visualization.
• Automatic bone removal with manual correction.
• Vessel-segment analysis.

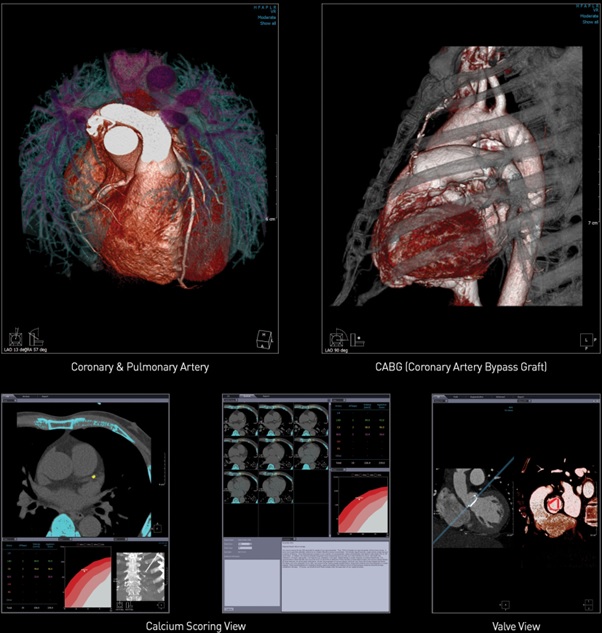

Xelis Cardiac

• Xelis Cardiac provides convenient 2D, 3D and 4D cardiac visualization and analysis tools with simple operation.
• HLA, VLA and SA image orientations.
• The MPR Slab viewer displays 4D cardiac images, including MPR and VR, for myocardial wall analysis.
• Automatic vessel detection, LV/RV separation, left-ventricular contour detection and analysis.
• Calcium scoring supports Agatston scores and volume measurements.

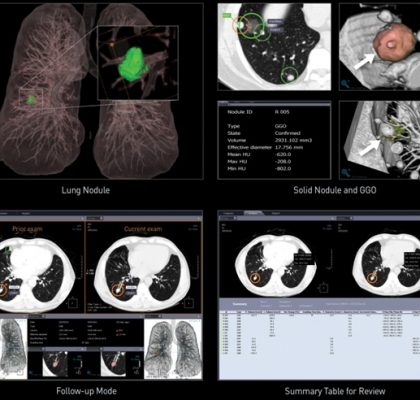

Xelis Lung

• Xelis Lung supports reading and diagnosis of MDCT studies. The product profile states lung nodule detection above 80%, including nodules and ground-glass opacities (GGO), to support pulmonary diagnosis.
• Automatic detection of solid nodules and GGO.
• Comparison before and after treatment.

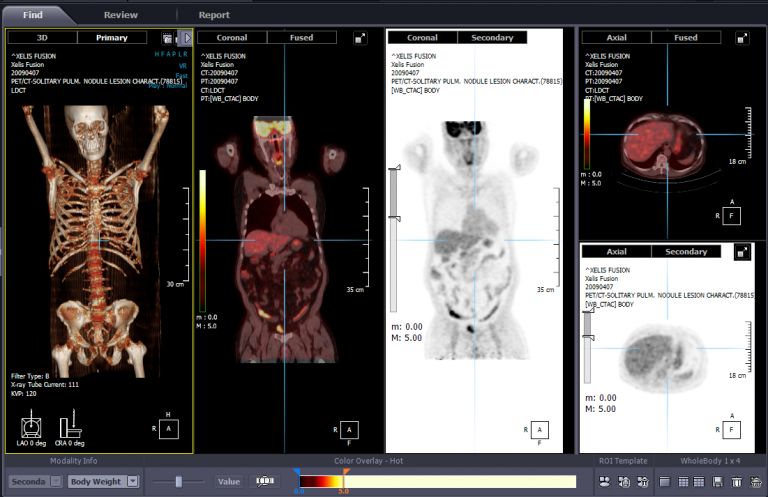

Xelis Fusion

• Xelis Fusion provides automatic or manual registration of PET-CT images, together with SUV measurement and analysis.
• Automatically displays images from two different modalities.
• PET-CT SUV analysis using body weight, lean body mass and body surface area.
• Follow-up comparison of current and prior studies.
