Automatic control with touchscreen cycle monitoring.
DELTA · South Korea

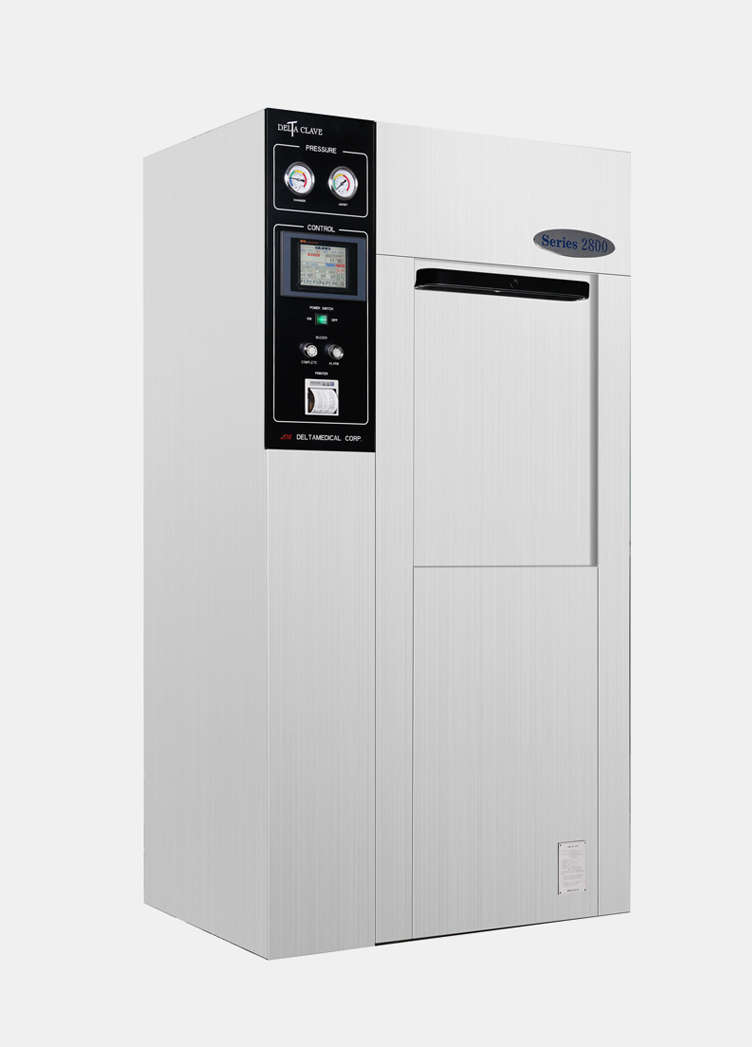

Steam sterilizer
S-2800
DELTACLAVE steam sterilizers for compatible instruments. Capacity, door arrangement and installation requirements depend on the model.
- Capacity / class
- 280 L
- Country of origin
- South Korea
Vacuum system supports pre-vacuum processing and load drying.
Printer records cycle time, temperature and pressure data.
DELTA
Model specifications
S-2800
| Chamber capacity | 280 L |
|---|---|
| Overall dimensions (W × H × D) | 958 × 1,855 × 1,330 mm |
| Chamber dimensions (W × H × D or Ø × D) | 450 × 500 × 1,250 mm |
| Temperature range | 110–135 °C |
| Control | PLC or embedded system |
| Vacuum system | Water-ring vacuum pump or water ejector |
| Touchscreen | TFT-LCD 5.7″ |
| Cycles | Pre-vacuum, Flash, liquid, gravity, leak test, Bowie–Dick test |
| Door type | Vertical sliding door |
| Power consumption | 22 kW |
| Approximate weight | 790 kg |
